grail::utility::UtilityReasoner Class Reference

The UtilityReasoner class - Class responsible for assigning behaviors using Utility System algorithm. All considered behaviors are given a score designating their utility in current situation. Most suitable behavior is chosen based on those scores. More...

#include <UtilityReasoner.hh>

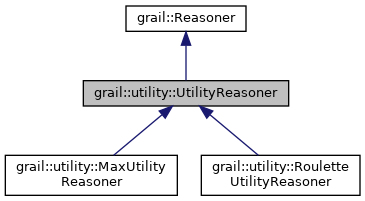

Inheritance diagram for grail::utility::UtilityReasoner:

Collaboration diagram for grail::utility::UtilityReasoner:

Public Member Functions
	UtilityReasoner (std::vector< BlueprintOption< Behavior, EntityBlackboardPair, grail::AIEntity >> blueprintOptions, float persistence=0.1f)
	UtilityReasoner - Constructor. More...
	UtilityReasoner (const UtilityReasoner &other)=delete
	UtilityReasoner (UtilityReasoner &&other)=delete
UtilityReasoner &	operator= (const UtilityReasoner &other)=delete
UtilityReasoner &	operator= (UtilityReasoner &&other)=delete
virtual void	StageBehavior (AIEntity &entity) override
	SelectBehavior - Selects behavior, if able, and assigns it to entity. More...
virtual std::unique_ptr< ISnapshotGenerator >	CreateSnapshotGenerator (size_t entityId) override
	CreateSnapshotGenerator - Creates object responsible for producing snapshots for this reasoner assigned to particular entity. More...
data::UtilityReasonerSnapshot	GetUtilityReasonerSnapshot () const
	GetUtilityReasonerSnapshot - Returns copy of current snapshot and clear the original data. More...
void	SetSnapshotProduction (bool isEnabled)
	SetSnapshotProduction - Tells reasoner whether it should produce debug snapshots of its state. More...
Public Member Functions inherited from grail::Reasoner
	Reasoner (const Reasoner &)=default
	Reasoner (Reasoner &&)=default
Reasoner &	operator= (const Reasoner &)=default
Reasoner &	operator= (Reasoner &&)=default

Protected Member Functions
virtual void	GetBestOption (const std::vector< SelectionOption< EntityBlackboardPair >> &options, SelectionResult &result, std::function< bool(const std::size_t &)> validator)=0
	GetBestOption - Selects most suitable option. Provides different context for each evaluated objects. More...
virtual void	ClearCache () override
	ClearCache - called when assigning this reasoner to an entity. Clears internally stored data, which may be invalidated when assigned to a different entity.

Detailed Description

The UtilityReasoner class - Class responsible for assigning behaviors using Utility System algorithm. All considered behaviors are given a score designating their utility in current situation. Most suitable behavior is chosen based on those scores.

Constructor & Destructor Documentation

UtilityReasoner()

grail::utility::UtilityReasoner::UtilityReasoner	(	std::vector< BlueprintOption< Behavior, EntityBlackboardPair, grail::AIEntity >>	blueprintOptions,
		float	persistence = 0.1f
	)

UtilityReasoner - Constructor.

Parameters

blueprintOptions	- Blueprints mapped with evaluators.
persistence	- Bonus score that currently executed behavior(or behavior from the top of the stack) gains during behavior selection. Persistence of 0 give no bonus at all, negative persistence causes unstable entity behaviors.

Member Function Documentation

CreateSnapshotGenerator()

std::unique_ptr< ISnapshotGenerator > grail::utility::UtilityReasoner::CreateSnapshotGenerator ( size_t  entityId )

overridevirtual

CreateSnapshotGenerator - Creates object responsible for producing snapshots for this reasoner assigned to particular entity.

Parameters

entityId

- ID of Entity to which this reasoner is assigned.

Returns

Created snapshot generator.

Reimplemented from grail::Reasoner.

GetBestOption()

virtual void grail::utility::UtilityReasoner::GetBestOption ( const std::vector< SelectionOption< EntityBlackboardPair >> &  options, SelectionResult &  result, std::function< bool(const std::size_t &)>  validator  )

protectedpure virtual

GetBestOption - Selects most suitable option. Provides different context for each evaluated objects.

Parameters

options	- Contexts paired with evaluators
result	- Reference to the selection result object.
validator	- Function validating whether given object can be chosen

Template Parameters

ContextType

- Type of evaluated object. By default - ValueTuple(AIEntity, Blackboard).

Implemented in grail::utility::RouletteUtilityReasoner, and grail::utility::MaxUtilityReasoner.

GetUtilityReasonerSnapshot()

data::UtilityReasonerSnapshot grail::utility::UtilityReasoner::GetUtilityReasonerSnapshot

(

)

const

GetUtilityReasonerSnapshot - Returns copy of current snapshot and clear the original data.

Returns

Current state's snapshot

SetSnapshotProduction()

void grail::utility::UtilityReasoner::SetSnapshotProduction

(

bool

isEnabled

)

SetSnapshotProduction - Tells reasoner whether it should produce debug snapshots of its state.

Parameters

isEnabled

StageBehavior()

void grail::utility::UtilityReasoner::StageBehavior ( grail::AIEntity &  entity )

overridevirtual

SelectBehavior - Selects behavior, if able, and assigns it to entity.

Parameters

entity

- Owner entity to which selected behavior will be assigned.

Implements grail::Reasoner.

---

The documentation for this class was generated from the following files:

• GrailUtilityAI/Reasoners/UtilityReasoner.hh
• GrailUtilityAI/Reasoners/UtilityReasoner.cpp
